Hyponic® - Right Angle Drive

Features

Patented Hyponic gear technology is up to 85% efficient across all ratios and requires no cooling fan.
NSF 51 approved antimicrobial powder coating protects against the growth of bacteria, mold, and fungus, IP69K Approved.

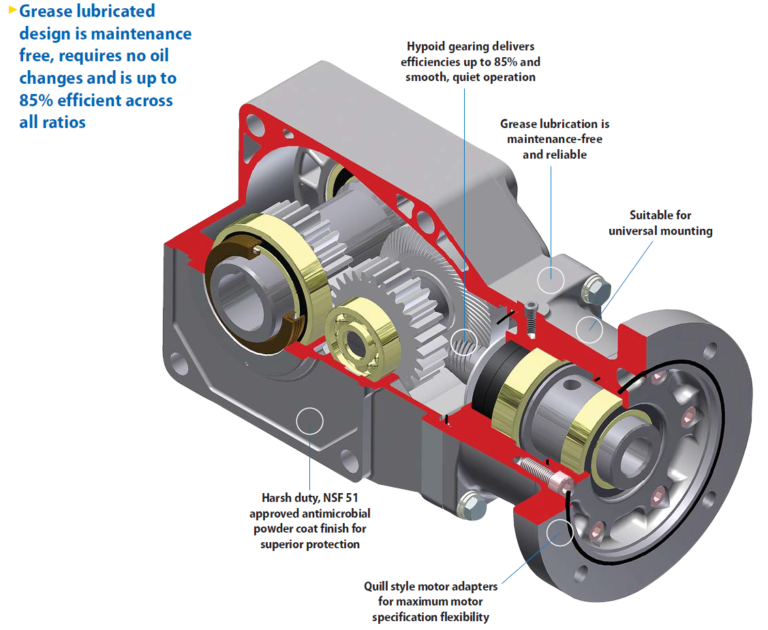

All-steel hypoid gear design transmits torque more efficiently for more torque density in a compact unit.
Maintenance-free grease lubrication eliminates oil changes.
Compact and lightweight design in an aluminum, corrosion resistant housing with optional washdown protection.
Optional plug-in shaft and bolt-on feet afford multiple mounting configurations.
Hollow bore makes installation and retrofit quick and easy.
Extremely quiet, smooth operation is ideal for commercial use.

Technical details:

The Sumitomo Hyponic® gearmotor represents 60 years of excellence in the design and manufacture of premium gearing solutions. With millions of Hyponics currently in service, the product features a compact, modular housing, maintenance-free grease lubrication, and high efficiency operation. Options include C-face quill design; unique FKM antimicrobial, multi-lipped rotary output seal; corrosion resistant, stainless output shaft and hardware; and synthetic NSF H-1, food-grade lubricant. NSF51 antimicrobial powder coating makes Hyponic the ideal choice for food, beverage, and pharmaceutical industries.

Ratios: 5:1 to 1440:1

Motor power: 0.1 kW to 11 kW

Electrical: 230/460 VAC, Single and 3-Phase

Housing: Lightweight, corrosion-resistant aluminum

Mounting: Flange, Bolt-on Feet

Shafts: Hollow, Solid

Lubrication: Grease, no maintenance

Additional Features

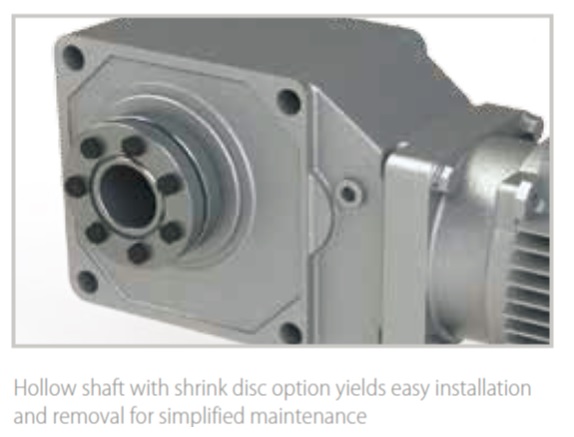

Hollow Shaft with Shrink Disc

The optimal solution for long, reliable service in high cycling applications, providing simple installation and removal.

Multiple Torque Arm Styles

We can match the torque arm style to your exact mounting requirements.

Face and Flange Mounts

Space saving designs, featuring ISO standard bolt patterns.

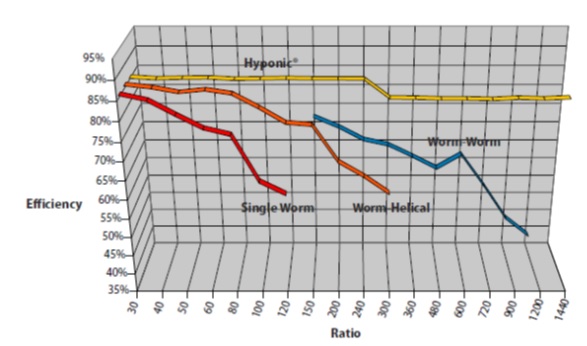

Features of the Hyponic® V/S worm

THE HYPONIC®

Efficiency

Patented Hyponic® gear technology is up to 85% efficient across all ratios

Gear Life

All-steel hypoid gearing can last millions of cycles, without measurable wear.

maintenance

Maintenance-free grease lubrication eliminates routine lubrication inspections.

Ratio

Ratios from 5:1 to 1440:1 enable desired speeds to be obtained. Will not affect the efficiency.

WORM

Efficiency

Worm gear reducer with a 40:1 ratio operates at less than 75%

gear life

Bronze gearing shortens operation life.

maintenance

Need to maintain regular lubrication inspection and change routine.

Ratio

High ratio, double reduction worm gear sets can have efficiencies below 60%. Limited ratio only.

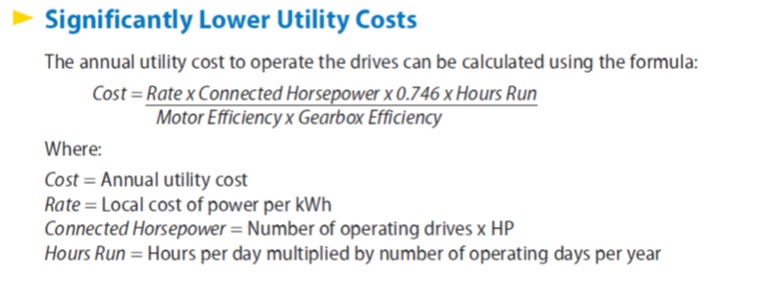

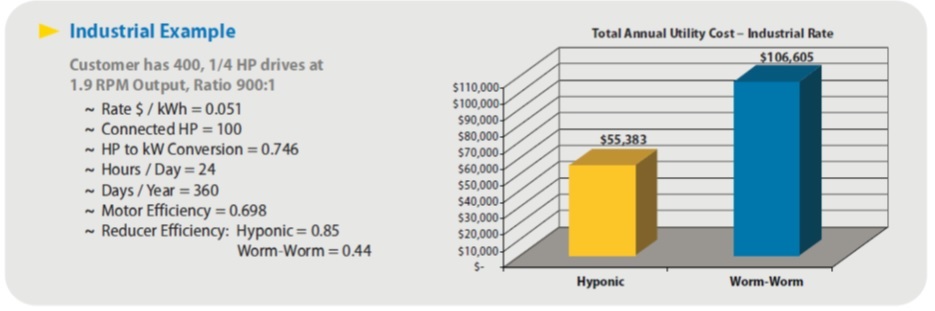

How HYPONIC® can save your money?

Are you in to food industry? We have solution for that too.

Multiple food grade option packages readily available including:

Antimicrobial Output Seals

Harsh-duty FKM antimicrobial, multi-lipped rotary output seal (pictured to the right).

Food Grade Lubricants

Synthetic, NSF H-1 compliant food grade lubricants readily available.

Standard Antimicrobial Coating

NSF 51 approved antimicrobial coating protects against the growth of bacteria, mold, and fungus. Optional food-ready, washdown IP55 duty coating available.

Stainless Steel Shaft Options

Corrosion resistant stainless steel keyed hollow bore and hardware available.
